How Did Old CRT TVs Work?Share

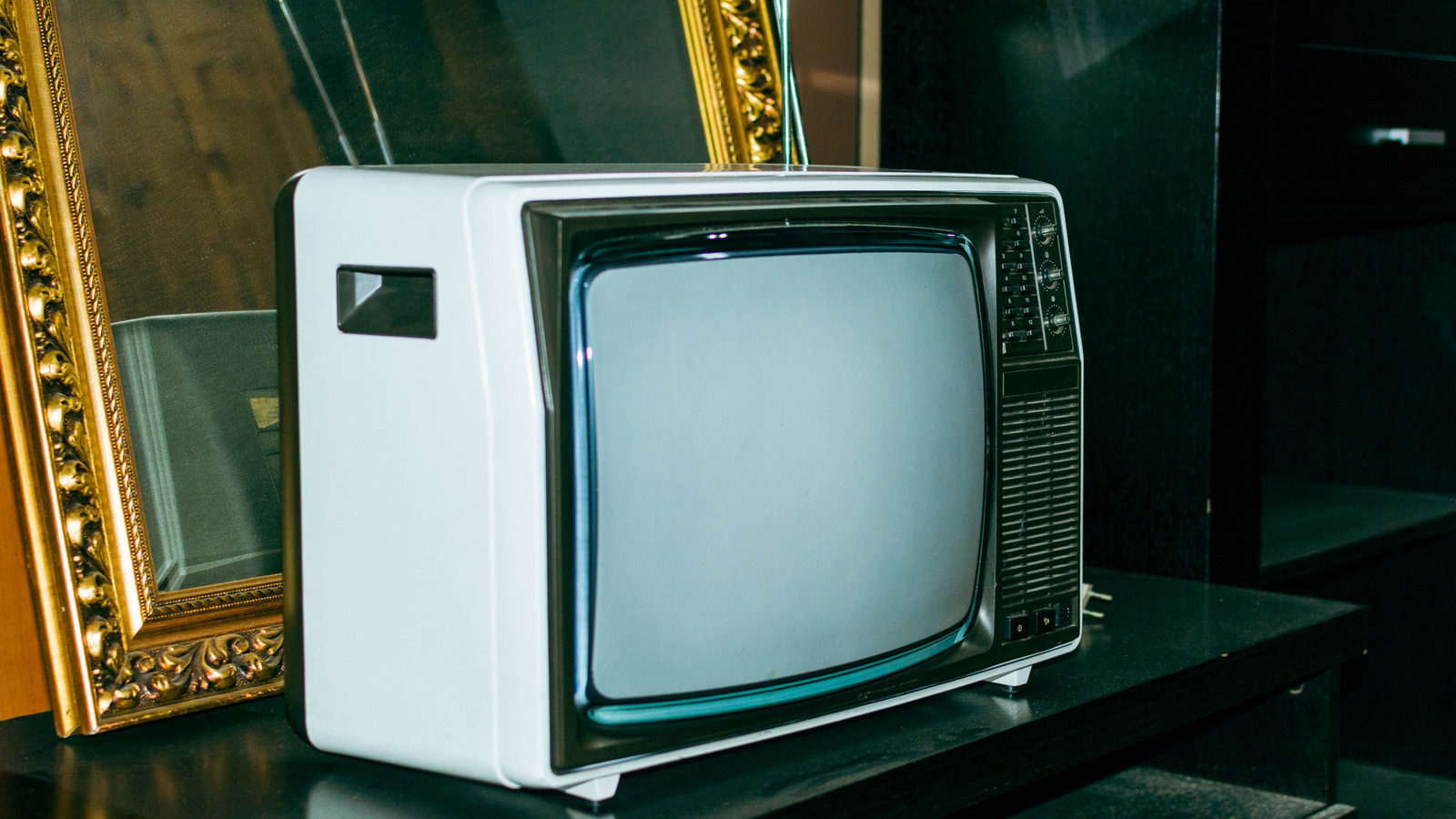

## Remembering the Glow: A Look Back at How CRT TVs Worked For those of us who grew up in the latter half of the 20th century, the iconic hum and the warm glow of a CRT television are nostalgic memories. These bulky boxes dominated our living rooms for decades, delivering entertainment and news in a way that’s drastically different from the sleek, flat-screen technology we use today. But have you ever stopped to wonder *how* those CRT TVs actually worked? It’s a fascinating piece of engineering, and surprisingly elegant in its mechanics. The core of the system is, as the name suggests, the cathode-ray tube – a vacuum tube shaped like a large funnel. This is where the magic happens. Inside the tube, a beam of electrons is generated. This beam itself is colorless until it interacts with a special coating on the inside of the screen – a reactive material called phosphor. The color we see when we watch a CRT TV is a property of these phosphor coatings, not the electron beam itself. Early CRT TVs used a monochrome phosphor, resulting in a black and white picture. Color TVs, of course, used a more complex system. They employed three phosphors – red, green, and blue – arranged in tiny dots or stripes across the screen. The electron beam, carefully controlled by magnetic fields, would scan across the screen, activating only the specific phosphors needed to create the desired color. This scanning process is incredibly rapid. The beam sweeps horizontally across the screen, line by line, from left to right. Once it reaches the end of a line, it quickly jumps down a small distance and starts again. The entire process repeats, painting the image on the screen in a continuous cycle. Controlling the intensity of the electron beam is key to creating a detailed picture. The beam's intensity is modulated – essentially, its brightness is changed – based on the signal being transmitted. Stronger signals create a brighter dot, while weaker signals result in a dimmer dot. This modulation is how the TV translates the incoming video signal into a visual image. The control of the electron beam wasn’t simple. It required a complex system of electromagnets positioned around the tube. These magnets created magnetic fields that steered the beam precisely, allowing it to navigate the screen and illuminate the correct phosphors at the correct intensity. While CRT technology ultimately gave way to newer flat-panel displays, it was a revolutionary invention that fundamentally shaped modern entertainment. The intricate dance of electrons, magnetic fields, and phosphors created a viewing experience that, for a time, was the pinnacle of home entertainment. (Source: SlashGear)
